Curtain Walls

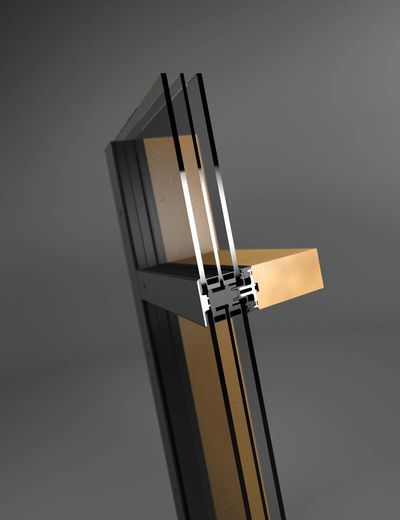

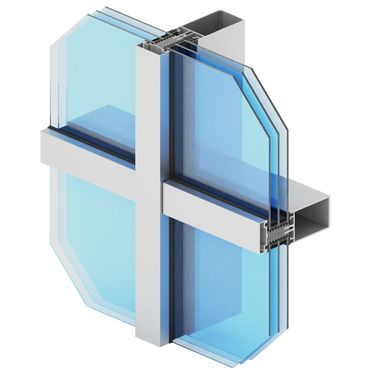

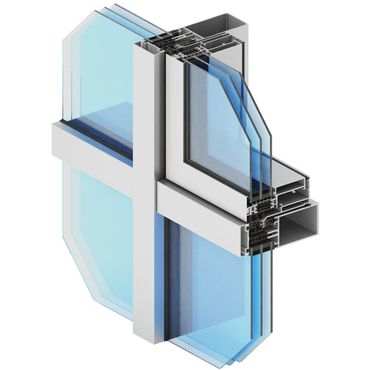

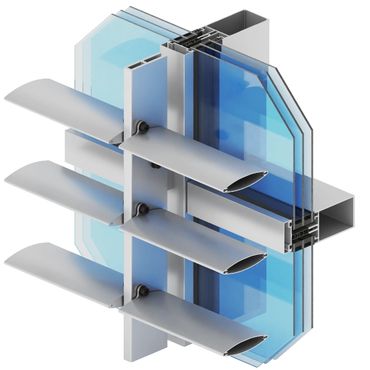

Heat-insulated façades for passive house requirements for transom-mullion designs with a support construction in laminated timber or wood materials with widths of 50 mm, profile depths according to static and construction requirements. Profile measurements must meet static requirements for a maximum deflection as set forth in the specifications for the product norm for curtain façades DIN EN 13830. Special “Passivhaus” requirements in respect of heat-insulation and seals in the façade structure are in all cases included in the works to be performed.

· Thickness of Glass to 64 mm

· Other Fillings to 64 mm

· Weight of Glass to 600 kg

· Polygonal Façade to 45°

Uw-Values ≥ 0.62 W/m²K

· Spruce

· Pine

· Fir

· Larch

· Oak

· Hemlock

· Douglas Fir

· Multiplex

· Pollmeier „Baubuche“

RAL, NCS, DB, anodised, metallic, highly weather resistant, sea water proof. Coating is carried out in conformity with the valid quality guidelines of the coating of building parts in aluminium of GSB-International GSB AL 631, or QUALICOAT regulations.

Welded, no visible joint lines, durable anti corrosion coating
